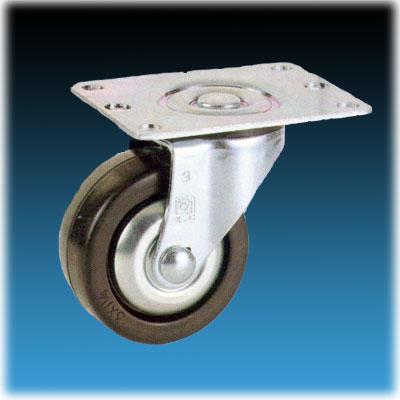

Stromberg 12 Series Light Medium Duty Caster - A1 Rectangular Top Plate

12 Series Light Medium Duty Casters

Supplier: Stromberg

Volume Discounts Apply

Ideal in factories and air baggage handling, warehouses on furniture dollies, platform trucks, and small parcel package conveyors. Order extra for spares!

Double row ball bearing swivel raceway construction.
Deeply embossed, formed steel top plate and yoke.
Corrosion resistant zinc plated finish.
Hardened raceway yoke.

A1 Rectangular Top Plate:

Overall size: 3-1/8"x4-1/8".
Bolt hole spacing: 2-3/8"x3-13/32", 3-1/2" on center.
Attaching bolt size: 5/16" and 3/8".

A2 Trapezoid Top Plate:

Overall size: 2-13/64"x3-11/32"x4-3/32".
Bolt hole spacing: 1-9/16"x2-3/4"x3-15/32".
Attaching bolt size: 5/16".

A3 Diamond Top Plate:

Overall size: 3"x4-7/16".
Bolt hole spacing: 3-1/2" on center.
Attaching bolt size: 3/8".

FOB: West Coast Warehouse.

Model Info

6 models for 12 Series Light Medium Duty Casters

Prices subject to change without notice

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by clicking the red button below.

Model No.	Wheel Size	Type	Bearing	Axle Diameter	Overall Height	Swivel Radius	Load Capacity	Price Ea.
12-25S-A1-HBB-TG	2-1/2" Diameter x 1-1/4" Tread Width	Hard Rubber	Ball	3/8"	3-1/4"	2-2/38"	150 lbs.	$9.59
12-30S-A1-HBB-TG	3" Diameter x 1-1/4" Tread Width	Hard Rubber	Ball	3/8"	3-25/32"	2-5/8"	165 lbs.	$10.49
12-25S-A2-HBB-TG	2 1/2" Diameter x 1-1/4" Tread Width	Hard Rubber	Ball	3/8"	3-1/4"	2-3/8"	150 lbs.	$9.59
12-30S-A2-HBB-TG	3" Diameter x 1-1/4" Tread Width	Hard Rubber	Ball	3/8"	3-25/32"	2-5/8"	165 lbs.	$10.49
12-25S-A3-HBB-TG	2 1/2" Diameter x 1-14" Tread Width	Hard Rubber	Ball	3/8"	3-1/4"	2-3/8"	150 lbs.	$9.59
12-30S-A3-HBB-TG	3" Diameter x 1-1/4" Tread Width	Hard Rubber	Ball	3/8"	3-25/32"	2-5/8"	165 lbs.	$10.49
