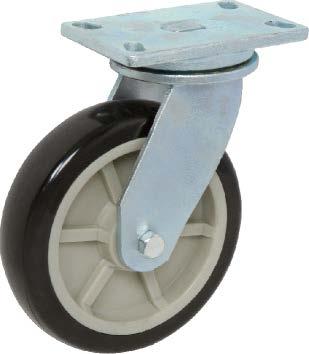

Stromberg STP7000 Series Heavy Duty Drop Forged Swivel Caster

STP7000 Series Heavy Duty Drop Forged Swivel Casters

Supplier: Stromberg

FOB: West Coast Warehouse
Lead time: 2-5 days

Stromberg STP7000 Series Heavy Duty Drop Forged Swivel Casters offer:

  • Finish: Bright zinc plating
  • Top plate: 3/8" AISI 1045 drop forged steel for maximum strength
  • Swivel: Double ball bearing coined "deep-groove" load and machined component trust raceway
  • Fork spacing: 2-1/2"
  • Legs: 15/64" steel, machine welded, engineered and formed to resist bending
  • Kingpin: 3/4" diameter bolt and nut
  • Grease fittings: Zerk in swivel section
  • Axle: 1/2" diameter axle with lock nut

Applications:

  • Cargo containers
  • Freight terminal trucks
  • Material handling carts
  • Large platform trucks
  • Model Info

20 models for STP7000 Series Heavy Duty Drop Forged Swivel Casters

  • Prices subject to change without notice

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by clicking the red button below.

Model No. Fastening Type Fastening Size Overall Height Wheel Diameter Tread Width Wheel Type Wheel Bearing Load Capacity Swivel Radius Price Ea. Qty
STP7060-01-NGF Top Plate 4-1/2" x 6-1/4" 7-1/2" 6" 2" Nylon Glass-Filled Roller 1200 lbs. 4-3/4" $56.00
STP7060-01-PAL Top Plate 4-1/2" x 6-1/4" 7-1/2" 6" 2" Polyurethane / Aluminum Roller 1000 lbs. 4-3/4" $68.00
STP7060-01-PALC Top Plate 4-1/2" x 6-1/4" 7-1/2" 6" 2" Crown Polyurethane / AL Precision 1000 lbs. 4-3/4" $62.00
STP7060-01-PCI Top Plate 4-1/2" x 6-1/4" 7-1/2" 6" 2" Polyurethane / Cast Iron Roller 1200 lbs. 4-3/4" $53.00
STP7060-01-PCIS-PBB Top Plate 4-1/2" x 6-1/4" 7-1/2" 6" 2" Polyurethane / Cast Iron Precision 1250 lbs. 4-3/4" $71.00
STP7060-01-PHN Top Plate 4-1/2" x 6-1/4" 7-1/2" 6" 2" Phenolic Roller 1200 lbs. 4-3/4" $49.00
STP7060-01-PLX Top Plate 4-1/2" x 6-1/4" 7-1/2" 6" 2" Plex Solid Polyurethane Roller 900 lbs. 4-3/4" $60.00
STP7060-01-PRX-PBB Top Plate 4-1/2" x 6-1/4" 7-1/2" 6" 2" Pro-Tech Xtra Precision 1000 lbs. 4-3/4" $52.00
STP7060-01-STL Top Plate 4-1/2" x 6-1/4" 7-1/2" 6" 2" Steel Roller 1200 lbs. 4-3/4" $52.00
STP7060-01-SDI Top Plate 4-1/2" x 6-1/4" 7-1/2" 6" 2" Ductile Iron Roller 1500 lbs. 4-3/4" $63.00
STP7080-01-NGF Top Plate 4-1/2" x 6-1/4" 10-1/8" 8" 2" Nylon Glass-Filled Roller 1400 lbs. 6-1/4" $55.00
STP7080-01-PAL Top Plate 4-1/2" x 6-1/4" 10-1/8" 8" 2" Polyurethane / Aluminum Roller 1200 lbs. 6-1/4" $63.00
STP7080-01-PALC Top Plate 4-1/2" x 6-1/4" 10-1/8" 8" 2" Crown Polyurethane / AL Precision 1200 lbs. 6-1/4" $71.00
STP7080-01-PCI Top Plate 4-1/2" x 6-1/4" 10-1/8" 8" 2" Polyurethane / Cast Iron Roller 1400 lbs. 6-1/4" $62.00
STP7080-01-PCIS-PBB Top Plate 4-1/2" x 6-1/4" 10-1/8" 8" 2" Polyurethane / Cast Iron Precision 1300 lbs. 6-1/4" $79.00
STP7080-01-PHN Top Plate 4-1/2" x 6-1/4" 10-1/8" 8" 2" Phenolic Roller 1400 lbs. 6-1/4" $52.00
STP7080-01-PLX Top Plate 4-1/2" x 6-1/4" 10-1/8" 8" 2" Solid Polyurethane Roller 1200 lbs. 6-1/4" $70.00
STP7080-01-PRX-PBB Top Plate 4-1/2" x 6-1/4" 10-1/8" 8" 2" Pro-Tech Xtra Precision 1200 lbs. 6-1/4" $55.00
STP7080-01-STL Top Plate 4-1/2" x 6-1/4" 10-1/8" 8" 2" Steel Roller 1400 lbs. 6-1/4" $60.00
STP7080-01-SDL Top Plate 4-1/2" x 6-1/4" 10-1/8" 8" 2" Ductile Iron Roller 1500 lbs. 6-1/4" $67.00
All items in RED ship express from our warehouses.
