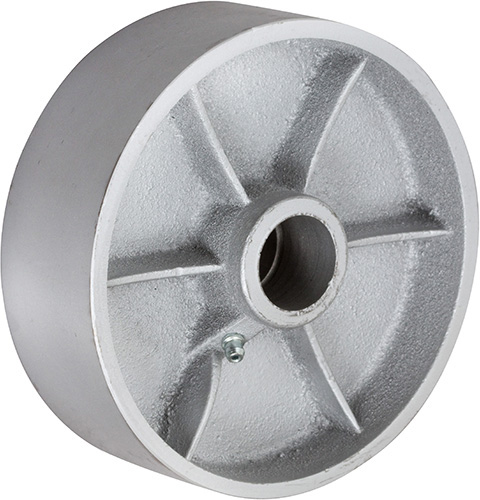

Steel Wheels

Volume Discounts Apply

A long-wearing wheel with a high load capacity.

Capacity: 2,500 lbs.
Bearings: Delrin, ball, precision ball or roller bearings.
Smaller diameter wheels are highly compressed sintered iron.
Larger wheels made from a blend of steel (flexibility) and cast iron (strength).
Temperature Range: -40°F to +500°F.

FOB: West Coast Warehouse.

18 models for Steel Wheels

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by clicking the red button below.

Model No.	For Caster Model	Wheel Diameter	Tread Width	Hub Length	Bearing ID	Wheel Bearing	Load Capacity	Price Ea.
SSTL-4K3	STP5040	4"	1-1/4"	1-15/16"	7/16"	Plain	300 lbs.	$8.99
SSTL-4K4	STP4040	4"	1-1/4"	1-15/16"	7/16"	Plain	300 lbs.	$8.99
SSTL-4M0	STP6640	4"	2"	2-3/16"	1-3/16"	(w/o bearing)	700 lbs.	$6.23
SSTL-4M7	STP6640	4"	2"	2-7/16"	3/4"	Roller	700 lbs.	$8.24
SSTL-5M0	STP6650	5"	2"	2-3/16"	1-3/16"	(w/o bearing)	1000 lbs.	$7.79
SSTL-5M7	STP6650	5"	2"	2-7/16"	3/4"	Roller	1000 lbs.	$9.79
SSTL-6M0	STP6660	6"	2"	2-3/16"	1-3/16"	(w/o bearing)	1200 lbs.	$9.37
SSTL-6M7	STP6660	6"	2"	2-716"	3/4"	Roller	1200 lbs.	$11.39
SSTL-6P0	STP6960	6"	2-1/2"	2-3/4"	1-15/16"	(w/o bearing)	1600 lbs.	$14.74
SSTL-6P8	STP6960	6"	2-1/2"	2-3/4"	1"	Roller	1600 lbs.	$22.00
SSTL-6R0	STP7560	6"	3"	3-1/4"	1-15/16"	(w/o bearing)	2500 lbs.	$19.93
SSTL-6R8	STP7560	6"	3"	3-1/4"	1"	Roller	2500 lbs.	$27.54
SSTL-8R0	STP7580	8"	3"	3-1/4"	1-15/16"	(w/o bearing)	2500 lbs.	$25.85
SSTL-8R8	STP7580	8"	3"	3-1/4"	1"	Roller	2500 lbs.	$33.43
SSTL-10R0	STP7510	10"	3"	3-1/4"	1-15/16"	(w/o bearing)	2500 lbs.	$39.34
SSTL-10R8	STP7510	10"	3"	3-1/4"	1"	Roller	2500 lbs.	$46.88
SSTL-12R0	STP7512	12"	3"	3-1/4"	1-15/16"	(w/o bearing)	2500 lbs.	$46.43
SSTL-12R8	STP7512	12"	3"	3-1/4"	1"	Roller	2500 lbs.	$53.99

All items in RED ship express from our warehouses.
