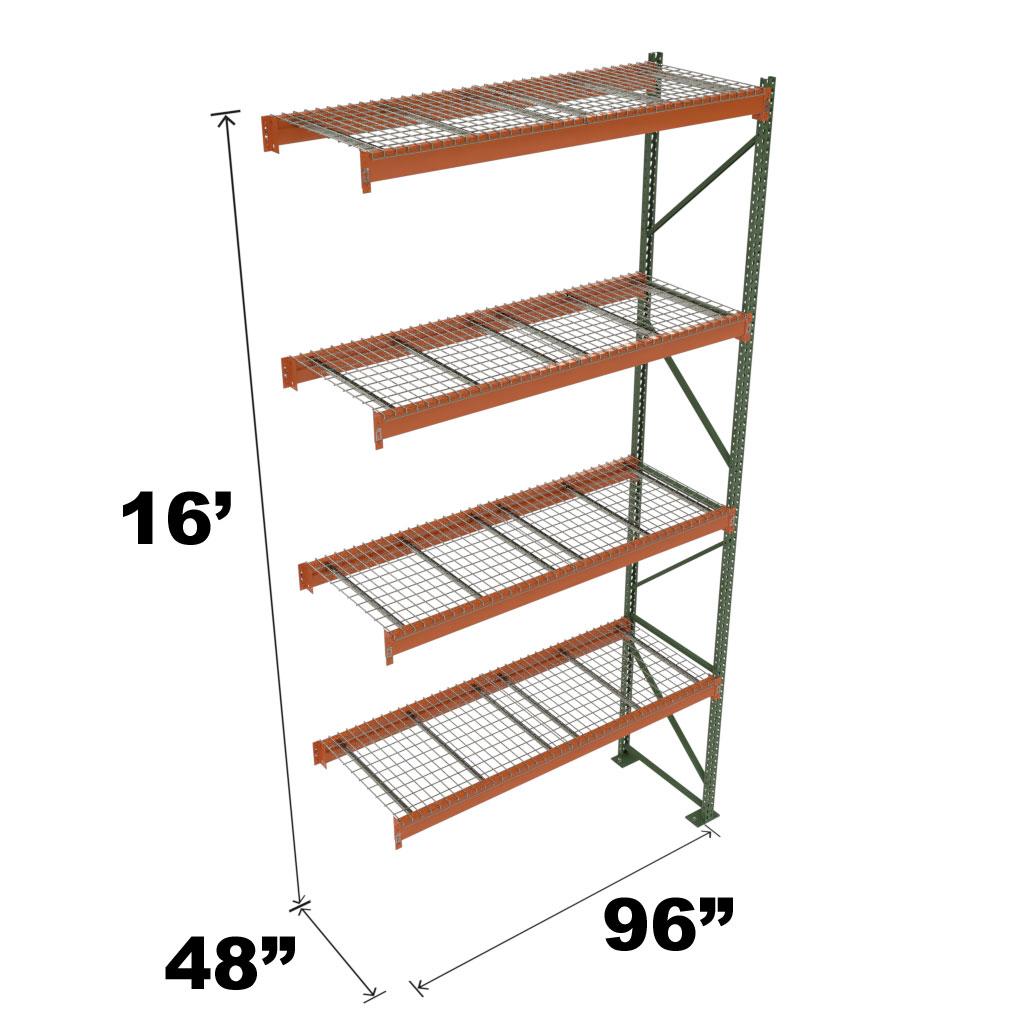

Teardrop Storage Rack - Add-on Unit with Deck - 96 in x 48 in x 16 ft

Manufacturer: Stromberg

In stock

Additional discounts applied

FOB: Portland, OR

Stromberg Teardrop Storage Racks offer:

How to select pallet rack:

  1. Frame Capacity: Add total weight of all pallets for each bay (exclude pallets on floor).
  2. Height: Measure all verticals including height of pallet, pallet load, beam height, add 4" clearance between top of load and bottom of beam above. Top beam should be a minimum of 6" less than maximum lifting height of your forklift.
  3. Depth: Pallet should overhang frame by 3" front and back. (48" pallet, use 42" deep frame). Deduct 6" from pallet depth. Pallets need to be in good condition.
  4. Width: Measure width of pallet, add a minimum of 3" pallet to frame clearance and 4" between pallets to determine correct beam length. Each pair of beams must support weight of pallets per level. Add-on sections require only one additional frame and required number of beams.
  5. Add 6" in width to get the overall width of a starter unit.

This rack is designed to interchange with most of the teardrop designs on the market today. The components are constructed of High Grade steel with 2" vertical adjustment step beam design. Accommodates crossbars, wood stringers or wire decking. Removable safety load clips are attached to each end of the beam.

Note: Upright frame capacities are based on 42" maximum vertical beam spacing.

Not sure what to do? Ask for our Systems Design Department. We can customize and design any storage rack, push back, flow rack, drive in rack, pick module, mezzanine or conveyor system. 1-800-338-1382.

If you need a large quantity of this product, call us at 1-800-338-1382 for additional bulk discounts!
  • Model Info

4 Models Available for Teardrop Storage Rack - Add-on Unit with Deck - 96 in x 48 in x 16 ft

  • Prices subject to change without notice

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by click the red button bellow.

Model No. Description Unit Type Dimensions Capacity Per Beam Pair Price ea. Qty
AUW171 Add-on with wire deck 4 upper levels 96" W x 48" D x 192" H 2250 lbs. $612.00
AUW172 Add-on with wire deck 4 upper levels 96" W x 48" D x 192" H 4200 lbs. $637.85
AUW173 Add-on with wire deck 4 upper levels 96" W x 48" D x 192" H 5100 lbs. $648.50
AUW174 Add-on with wire deck 4 upper levels 96" W x 48" D x 192" H 6000 lbs. $682.25
All Items in Red are in Stock
